The Chargeable Battery Holder Part of Lawn Mower -Injection Mold with Hot Runner

Quick info

Good at designing and manufacturing custom injection molds, including Unscrewing Injection Mold, Over-mold, Collapsible-Insert Injection Mold, Hot Runner Injection Mold, Gas-Assistant Injection Mold, 2-Step Slider Injection Mold, Cavity-Lifter Injection Mold and 3-Plate Mold.

This is an injection molded part from an injection mold with 12-drops of valve gate YUDO hot runner, which is the Chargeable Battery Holder part for a Lawn Mower. It is made from PC, black.

This part is produced by a single injection mold with single-cavity and tungsten tips and hardened gate inserts, of which cavity and core blocks are made of P-20 steel and slides are made of H-13. Its mold type is Middle Volume Production Tool. Besides, the mold surface finish for this part is SPI-A2 and SPI-C3 standards. Furthermore, the size of the mold is 550*700*621mm, and its net weight is 1750kg. The mold service life would be 300,000 shots.

The injection mold is made by Tip-Top molds in Shenzhen, China. The molded part on the picture you’ve seen is also the sample we produced for customer’s verification. After the mold trial every time, we delivered the samples to our American customers by UPS, FedEx, or DHL. Mold is too heavy to take the express delivery so it was delivered by the logistics company after being packaged in a wooden box. We would help to handle it, but of course, customers could arrange their own freight forwarder too.


Part Material


Part Application

Chargeable Battery Holder for Lawn Mower

Selling Units

Single Mold

Mold Type

Middle Volume Production Tool

Mold Details

Single-Cavity, 12-Drops of Valve Gate YUDO Hot Runner-With Tungsten Tips and Hardened Gate Inserts

Mold Finish



Mold Steel

Cavity and Core Blocks: P20;  Slides: H-13

Mold Size

550*700*621 mm

Mold Weight

1750 kg

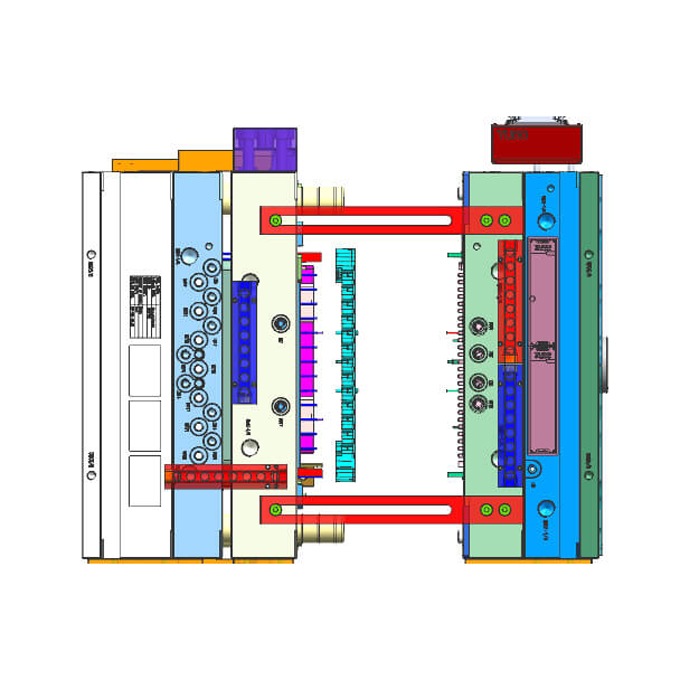

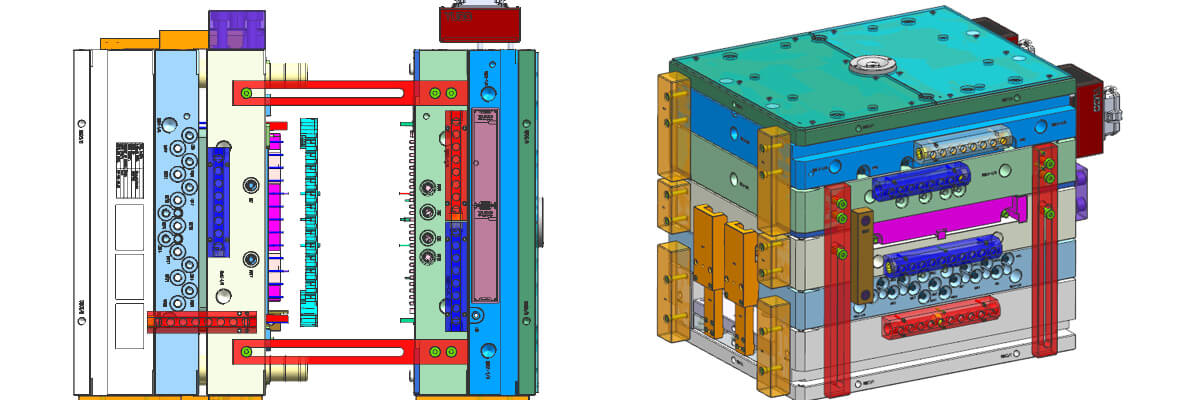

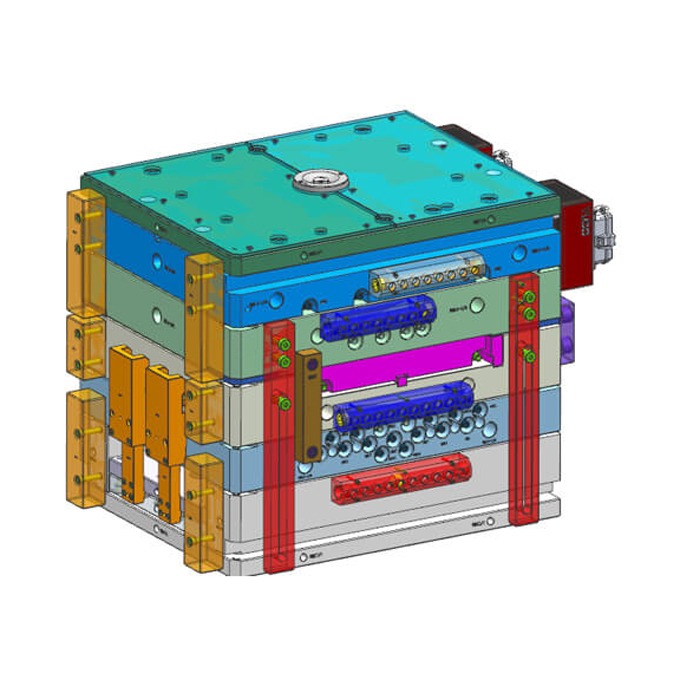

Mold Photos



Place of Origin

Shenzhen, China

Package Type

Wooden Box
