The Housing Part of Lawn Blower-Injection Mold with Hot Runner

Quick info

Good at designing and manufacturing custom injection molds, including Unscrewing Injection Mold, Over-mold, Collapsible-Insert Injection Mold, Hot Runner Injection Mold, Gas-Assistant Injection Mold, 2-Step Slider Injection Mold, Cavity-Lifter Injection Mold and 3-Plate Mold.

This is an injection molded part from an injection mold with hot runner, which is the Spiral Housing Part for a Lawn Mower. It is made from PA6+GF33, black.

This part is produced by a single injection mold with two cavities and 2-drops of open gate YUDO hot runner, of which cavity and core blocks are made of H-13 steel. Its mold type is High Volume Production Tool. Besides, the mold surface finish for this part is SPI-A2 on the cavity side and SPI-C3 on the core side. Furthermore, the size of the mold is 1100*650*741mm, and its net weight is 3755kg. The mold service life would be 1,000,000 shots.

The injection mold is made by Tip-Top molds in Shenzhen, China. The molded part on the picture you’ve seen is also the sample we produced for customer’s verification. After the mold trial every time, we delivered the samples to our American customers by UPS, FedEx, or DHL. Mold is too heavy to take the express delivery so it was delivered by the logistics company after being packaged in a wooden box. We would help to handle it, but of course, customers could arrange their own freight forwarder too.


Part Material


Part Application

Spiral Housing Part for Lawn Blower

Selling Units

Single Mold

Mold Type

High Volume Production Tool

Mold Details

2-Cavity, 2-Drops of Open Gate YUDO Hot Runner

Mold Finish

Cavity: SPIA2

Core: SPI-C3

Mold Steel

Blocks: H-13

Mold Size


Mold Weight

3755 kg

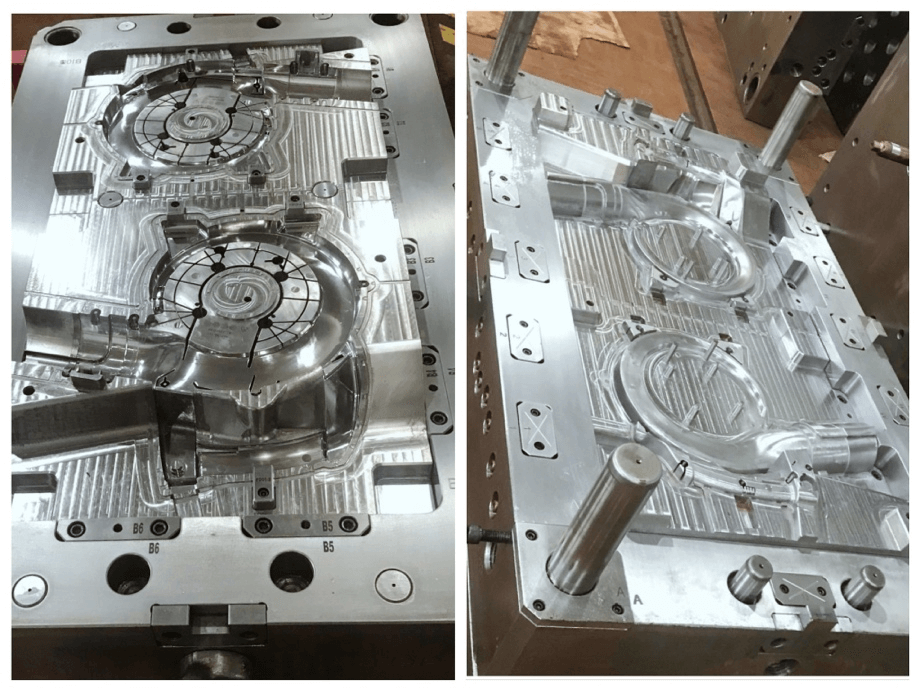

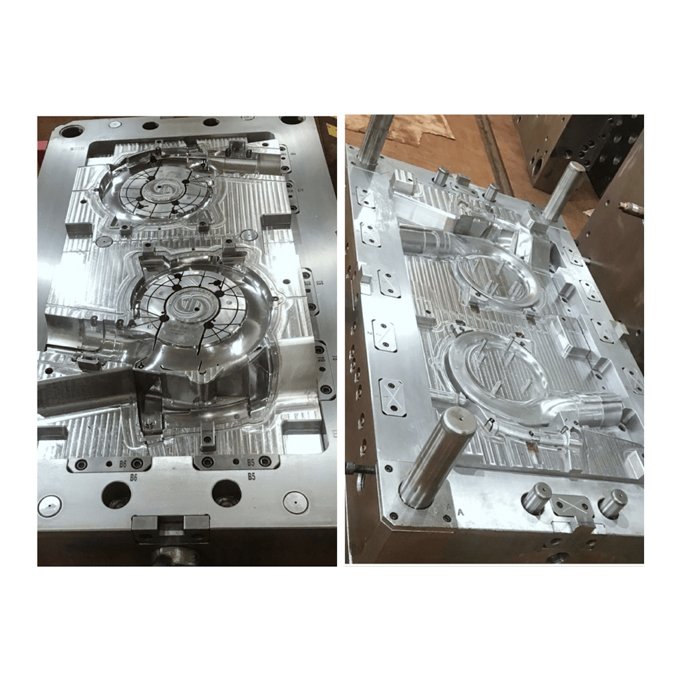

Mold Photos


Place of Origin

Shenzhen, China

Package Type

Wooden Box

Inner Box Size

1200*750*820 mm

Outer Box Size


Gross Weight

3842 kg
