The Handle Part with Gas-Assist of Lawn Trimmer-Injection Mold with Hot Runner

Quick info

Good at designing and manufacturing custom injection molds, including Unscrewing Injection Mold, Over-mold, Collapsible-Insert Injection Mold, Hot Runner Injection Mold, Gas-Assistant Injection Mold, 2-Step Slider Injection Mold, Cavity-Lifter Injection Mold and 3-Plate Mold.

This is an injection molded part from an injection mold, which is the Handle Part with Gas-Assist for a Lawn Trimmer. It is made from PA6+GF33, black. The whole Handle Part can be divided into three pieces including the OTR part, INR part, and the Handle PIVOT part.

The whole part is produced by two molds with Gas-Assist and a single-drop of open gate YUDO hot runner, including a single-cavity injection mold and a 1+2-cavity injection mold, of which cavity and core blocks are made of P-20 steel. Their mold type is High Volume Production Tool. Besides, the mold surface finish for this part is SPI-A2 and SPI-C3 standard and the texture is MT1055-3. Furthermore, the sizes of these two molds are 400*450*355mm and 550*550*656mm, and their net weights are 465 kg and 1430 kg. The molds’ service life would be 300,000 shots.

Both two injection molds are made by Tip-Top molds in Shenzhen, China. The molded part on the picture you’ve seen is also the sample we produced for customer’s verification. After the mold trial every time, we delivered the samples to our American customers by UPS, FedEx, or DHL. Molds are too heavy to take the express delivery so they were delivered by the logistics company after being packaged in wooden boxes. We would help to handle it, but of course, customers could arrange their own freight forwarder too.


Part Material

PA6+GF33 -Black

Part Application

Handle Part for Lawn Trimmer

Selling Units

Two Molds

Mold Type

High Volume Production Tool

Mold Details

One mold is with a single cavity and the other mold is with a 1+2-Cavity, Single-Drop of Open Gate YUDO Hot Runner, with GasAssist

Mold Finish




Mold Steel


Mold Size

400*450*355mm, 550*550*656mm

Mold Weight

465 kg, 1430 kg

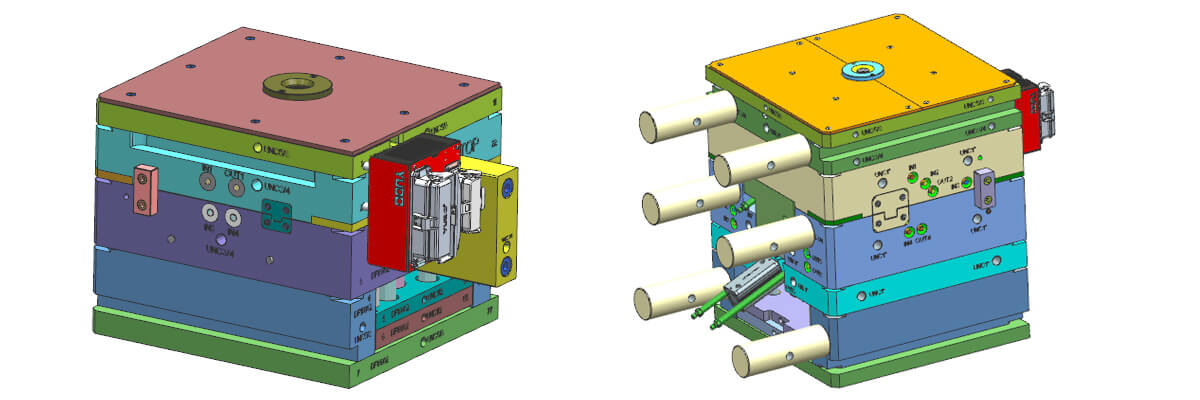

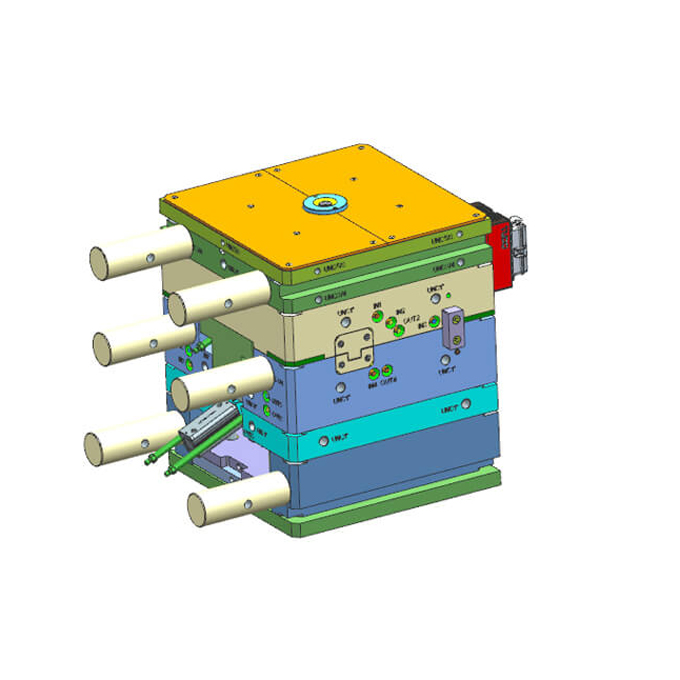

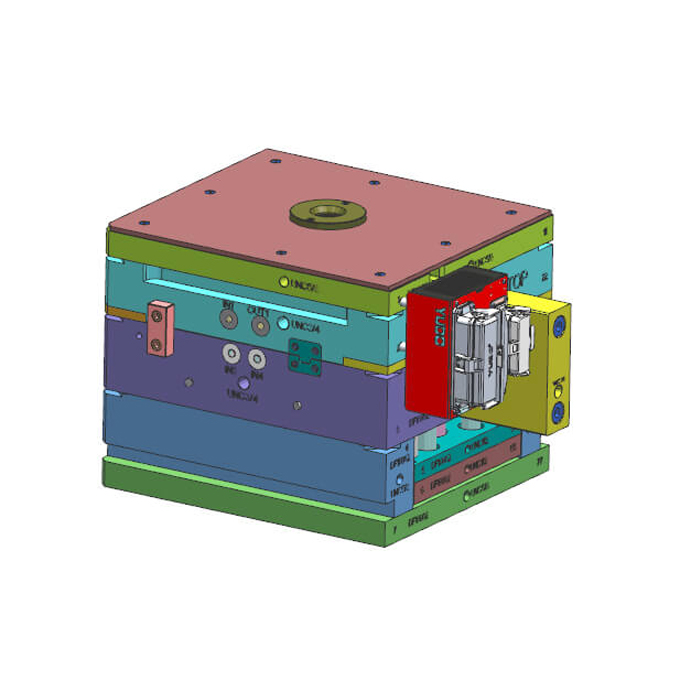

Mold Photos


Place of Origin

Shenzhen, China

Package Type

Wooden Box
