What to Know About Overmolding?

Overmolding is a manufacturing process where resin and surfactant are added in an article of manufacture. This creates the feeling that it is dipping in chocolate or putty for example, which leads many people to refer to these objects as “resin castable.” Overmolding is described as a process where one part of the product, usually an insert or shell-type item such as a case for your phone and screen coverings is creating to using two different materials. The first material (substrate) becomes partially covered with additional layers during production; these subsequent molding surfaces are called “overlays.”

What Exactly Is the Substrate?

The substrate is the primary piece in what will ultimately turn into a solitary nonstop part made out of synthetically reinforced and frequently precisely interlocked materials.

It could be anything, from metal machined parts to plastic molded products or even threaded inserts for screws; all made by brazing together various pieces that are designed specifically for this purpose!

What is the Overmolding Material?

The Overmolding Material is a plastic that is mixed with additives like colorants, foaming agents, and other fillers. It begins as pellets in pellet structure before they are warm-up to their dissolving point. So it tends to infuse into the form tooling when you press “submit.” now and again.

However, there are limits on what materials function admirably for this interaction on the grounds that not all plastics will bond together pleasantly – particularly on the off chance that one piece of your end result requires metal parts all things being equal!

What Is the Purpose of Overmolding?

The overmolding process is useful for a number of reasons, but the most common material is toothbrushes. They are often applied in order to create tool handgrips and handle cordless drills or screwdrivers with ease!

In addition, it’s also possible that you’ll come across personal care products like shampoo bottles and razors if your project involves those kinds of items as well.

Here we discussed a few examples of typical overmolding applications:

Plastic Over Plastic

For those who want their product to stand out, over-molding is a great way of doing it. Plastic Over Plastic – first you have the rigid plastic that’s being molds into an object or design on top another layer which is texturing and/or colouring differently than its sibling.

Rubber Over Plastic

To give something a soft grip, you can use rubber over plastic. A rigid plastic is first molded and then the TPE (or other type of accessory) will be applied to or around it in order for its surfaces to come into touch with each other so that user feels less resistance when gripping onto them firmly.

Plastic Over Metal

Many industries rely on overmolding to create a part with the desired characteristics. Plastic Over Metal is one example of this process, where first metal parts are machine and then inserting into an injection molding tool so plastic is adding around it for shape or coloration purposes- often capturing these components in between two pieces that are original designs without them being there at all!

Rubber Over Metal

Overmolding can be used in a variety of ways, often to give some extra grip or cushion. One common application is rubber over metal. First, the surface needs machining before casting it with either natural rubber-like silicone-based ones. Which are more durable than their synthetic counterparts. However, they are still soft enough not to cause discomfort when pressing against them for long periods. Then you put these into injection molding tools so that your final product gets forming around its base material (in this case both hard and plastic).

You could use TPE instead. Thermoplastic polyurethane elastomers provide better traction on smooth surfaces without being too bulky at all times.

A Few Things to Note:

A product can have more than two materials. Some products use three different surfaces on one part in order to achieve color breaks and grip, like scissors!

How is the Overmolding Process Typically Performed?

Injection Molding is a process that overcomes many of today’s manufacturing hurdles. Overmolding has been around for years, but it continues to grow in popularity. There are so many benefits when compared with other methods like casting or pushing parts through a die using machine tools. This includes improved precision and surface quality, as well as reduced energy consumption due to less tool, wear common during machining operations.

Injection molding goes one step further by allowing manufacturers greater control. They can change certain physical attributes such as Power grip Strength (the strength required before breaking), parting lines pattern density location, etc.

A good idea is to make sure your substrate and overmolding materials interlock. Bonding these two together will not only be done chemically but also physically. With the use of mechanical components that connect both pieces in some way or another.

Overmolding Standards for Prototypes

Overmolding can be a quick and easy way to add details to an already existing model. For example, at tiptop molds, we use our overmolding service for creating prototypes with soft rubbery materials that will quickly cure in just 30-60 seconds!

We are also able to control the color or hardness depending on what part needs extra attention. While using injection polyurethane casting resins results in parts being less costly than other manufacturing methods. Such as plastic molding steps often associated with mass production plastics goods.

Why Would you Want to Overmolding?

There are a lot of reasons to over mold. Among the most common, you can do it for aesthetic impacts or in order provide soft grips around certain areas on separate materials and add more flexibility with rigid parts by eliminating manual work altogether-all without having multiple machines have a need at your company!

Final Words

The overmolding process is a great way to produce complex parts with minimal tooling, and it is useful for all sorts of 3D printing needs. Get in touch with us if you’re interested in learning more about how we can help your company develop new prototypes or market existing products using this innovative process. We love helping companies design their next steps!



Multi-drop hot runner injection molding system has several advantages over traditional course

Basics of injection molding happen to be just the tip of an iceberg. It is because many complexities exist in the industry as a multi-drop hot runner injection mold system.

This step of methodology eventually is a one-step further whilst discussing the injection molding business in comprehensive detail. For this reason, hence, we are from here on going to discuss the basics of the hot runner system along with its apparent advantages over the traditional methods.

Due to these advantages, the system thus appears to be challenging the traditional cold runner methods. We are also going to discuss different types of hot runner systems and the disadvantages of the system in the injection molding industry. However, the very first step is the need is to define the system itself. Read more here

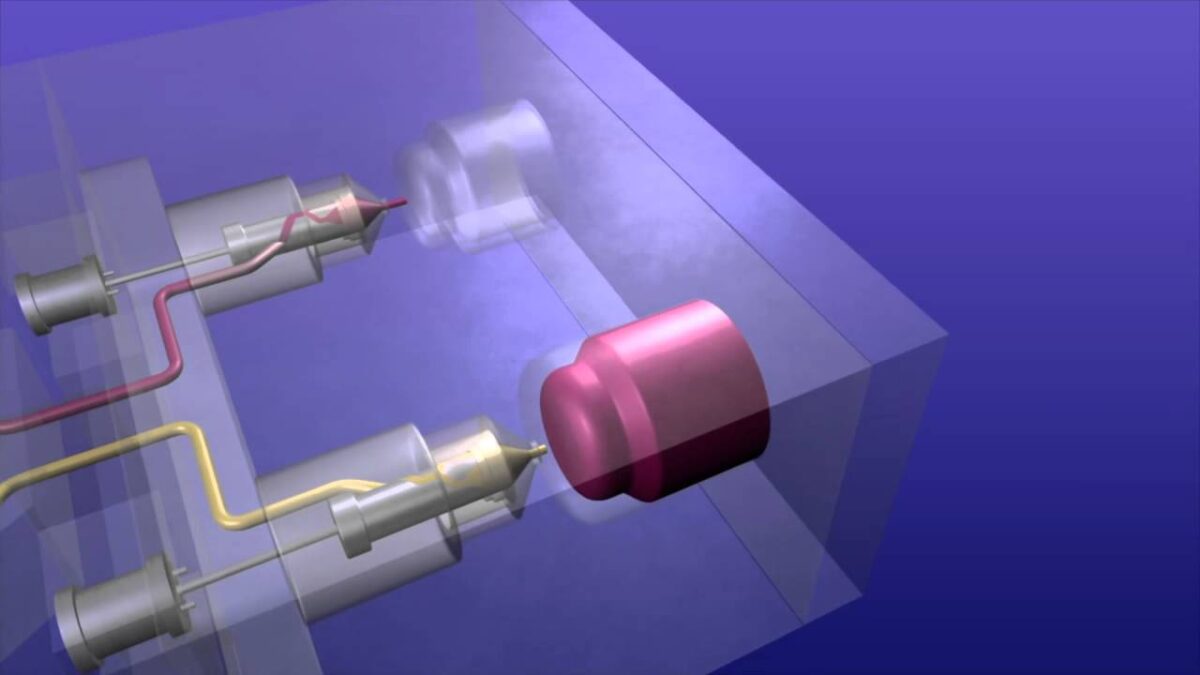

What Is the Multi-Drop Hot Runner Injection Mold?

The system of multi-drop hot runner injection mold is a design that includes a two-plate injection molding assembly. The assembly overall comprises a runner-less heated manifold system and along with it contains heated nozzles.

Both of these sub-systems are thereby managed through a temperature control system. The role of these plates ultimately is to keep the thermoplastic material in a molten state as long as possible. After this step, the molten state of the material is thereby injected into the cavity with the help of special temperature-controlled gates.

The gates are also referred to as drops. The drops help in the formation of the final part in a precise manner. In the last step, the final shape gets cooled down by using a cooling system and is thus ejected from the mold.

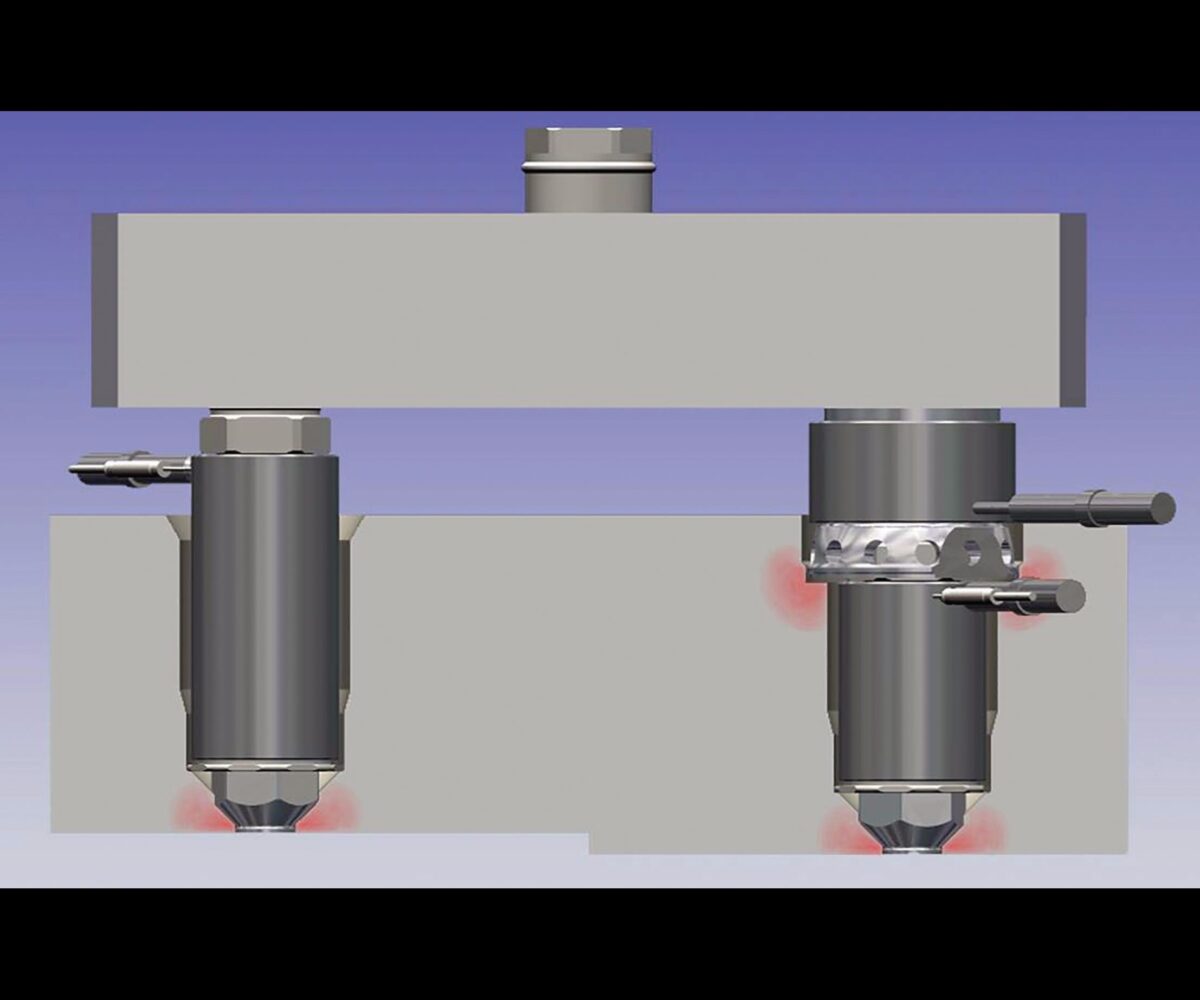

Different Types of Multi-Drop Hot Runner Injection Mold

Talking about the different types of hot runner systems, let us discuss some famous ones in detail, amongst them are:

Internally Heated Hot Runner System

Internally heated multi-drop hot runner injection mold is the most famous type of hot runner system that offers the most wanted and better flow system in the industry. It is because the system thereby uses torpedo cartridge heaters.

These heaters however attach special thermocouples mounted inside the runners. This eventually allows the system to heat the material from inside out. By using this, the load on heaters is much less than that of the externally used hot runner manifolds.

These features make the system more efficient and effective. This becomes the most needed method when it comes to advanced flow control, the internally heated molds are the perfect methods.

Externally Heated Hot Runner System

When we talk about the externally multi-drop hot runner injection mold system, we are talking about the usage of several temperature control systems.

The systems hence include cartridge heaters, heated pipes, cast-in heater, bands of the heater, coil heater as well as torpedo heaters. These heating systems help in controlling the manifold melting temperature that surrounds the runner challenge.

This makes the system ensure the full transfer of heat that makes it easier to start up. The system becomes more feasible for the material as polymers because they are much sensitive to thermal variation.

Insulated Hot Runner System

The insulated multi-drop hot runner injection mold uses the benefits of insulation properties of the molten thermoplastic material used in the process. For this purpose, the process uses the formation of oversized passages in the molten plates.

In this way, it utilizes insulation properties. By using this system, there is an availability of thick layers of thermally insulated thermoplastic. This helps in freezing around the large diameter of an insulated runner. Hence, it helps the thermoplastic to move through the center of the insulated runner source.

The design of this system however appears to be quite simpler than that of those previously discussed. Moreover, the cost of the production comes lower than that of other traditional methods as an internally heated and externally heated system.

However, this system may result in the formation of uneven design production and filling. The system thereby is famous for heat-sensitive thermoplastic materials and polymers. In short, the method serves best when it comes to changing colors.

Advantages

The system was first introduced in the year 1960s. the system since then appears to be the most adaptive method, however, it went throw many changes and advancements with the passage of time and trends.

Now, with modern technology, the system appears to be the best in injection molding methods. This eventually makes the system carry some favorable advantages that make the system to be famous in the industry. It includes:

Improving the Efficiency of the Mold

The system as we have discussed carries the property to provide the uniformed melting viscosity throughout the system. It also carries a batter pressure injection control that reduces the melt shot capacity hence making it to be the most efficient system.

Less Wastage of Material

When we eliminate the runner, we eventually are eliminating the chances of expensive scrap that causes pots of money.

Fast Cycle Period

The period of a cycle in multi-drop hot runner injection mold tends to get smaller because of the presence of smaller shot sizes.

Disadvantages

There are a few drawbacks that we must expect because of so many things going on in these systems. It includes:

More Expensive

The system becomes more expensive as it has more complex molding features. It also carries a high price tag when it comes to its maintenance. Not only this but also energy consumption in old systems get higher.

Complex Operating Requirements

It involves the addition of complex additional hot runner tools and components. Moreover, the additional wear and tear factors in the system cause it to be difficult to manage and operate.

Thermal Sensitivity of Polymers

As we know the system gets too much exposure to additional heat. It thereby makes some thermal sensitive materials such as polymers less suitable for the hot runner systems.

Changing Color Isn’t That Easy

We need to have a multi-step purge of the material that we are using to change colors in the process. The requirement leaves out too much scrap material that appears to be expensive with added machine downtime.

For more information and guidance, feel free to visit or contact our customer support team here

Why Should You Invest in a High-Quality Injection Mold Manufacturer?

Cannot decide upon which injection mold manufacturer to choose? With a high-quality injection mold manufacturer, you can avail many benefits such as consistency and affordable production of a huge range of complex plastic parts that can withstand any environmental condition.

Not only this but there are more benefits of a quality injection mold manufacturer as well. Want to know some of them? Keep reading then!

1.      Production of Complex Geometry Parts

One of the major benefits of investing in a quality mold manufacturer is that they can easily produce complex geometry parts with perfection. That’s because they have a scientific molding approach and the right tool design to process optimization.

Want to know what their key to consistency is? It is their analysis techniques and reliance on comprehensive data collection at the center of scientific molding. Not only this but all the engineers are extremely trained in the process. So, when everything is done correctly, you get the perfection that you want in complex geometry parts.

2.      Efficiency

With the help of a high-quality injection mold manufacturer, you will get a decided advantage in terms of efficiency. The entire team – from engineering to production – will have decades of experience. As a result, they can easily determine how to optimize manufacturing and part design.

When they implement basic practices such as focusing upfront on design, they can minimize the problems to come later on. Moreover, they incorporate value-added services to combine different steps of the production process. This will help you in streamlining time and cost commitments.

3.      Strength

The strength and sturdiness of plastics have significantly expanded throughout the long term, and the present lightweight thermoplastics can withstand even the harshest conditions comparable to — or better than — metal parts.

There are more than 25,000 design materials to look over for developing complex injection molded applications. Elite mixes and crossovers can likewise be formed to meet quite certain part necessities and qualities, like high rigidity.

4.      Simultaneous Using of Multiple Types of Plastic

It is a common thing for complex part designs to require different components made of different plastic parts. While it looks like a simple matter of choice, it can turn into an extremely complicated process. This is why you need to hire a high-quality injection mold manufacturer for your processes.



When you hire someone competent, they will ensure compatibility no matter what the circumstances are. As a result, you can easily reduce the chances of defects, warranty claims, and injury risks.

5.      Cost Saving

There are several ways in which a quality injection mold manufacturer can help you lower the cost with their experience. One of the most common ways to manage the cost of injection molding is by collaborating between the injection molding manufacturing team and the OEM.

You should implement this way before the production starts. In addition to this, a reputed injection mold manufacturer focuses on Design for Manufacturability and another crucial phase during the design phase.

This significantly reduces the problems that may arise with moldability. As a result, it minimizes the need for downtime, expensive tooling changes, and other delays in production.

6.      Precision

We all know that complex part designs require tight tolerance. The injection mold manufacturers can only achieve this precision in designs with an accuracy of +/-.001 inches.

When you hire a quality mold manufacturer, you cannot only achieve these measurements effortlessly but also make them repeatable across production runs and equipment.

7.      Multiple Finishes

The majority of the injection molded parts deliver a smooth surface completion extremely near the ideal last look. Notwithstanding, a smooth appearance isn’t suitable for each application.

Contingent upon the physical and synthetic properties of the plastics utilized, injection molding takes into account surface completes that don’t need optional activities — from matte completes and exceptional surfaces to etching and that’s just the beginning.

8.      Enhanced Strength

With the process of plastic injection molding, you can easily use the fillers in the molding material. When you use these fillers, you can efficiently reduce the density of the plastic during the molding process.

It also helps the completed parts achieve greater strength. So, if you also want your plastic molded parts to have additional strength and durability, you must opt for a high-quality injection mold manufacturer. This will give the products the enhanced strength that they require.

9.      High-Output Production and Consistency

There is no denying the fact that high-quality production of complex plastic parts requires consistency and a repeatable process to make sure that the designs have tight tolerances.

With the help of a quality injection molding manufacturer, you can ensure that the quality remains consistent by using the same mold for each part repeatedly. When all of this will be backed by the molder’s improved practices, this will incorporate in the designs a current leading-edge technology.

10. Color Control

Different plastic parts have different color requirements. But, it sometimes gets impossible to achieve the color you want because you are not working with an experienced mold manufacturer.

However, when you hire a reputed and trustworthy molder for your operations, you will have complete control over the colors that you want for your designs.

From clear to any color that you need, the molder will make it possible by aligning addictives, plastics, and biocompatibility to achieve the color that you want.

11. Lightweight

Mostly applicable in the car business, various automotive parts need to be light in weight. Basically, utilizing plastic parts decreases the heaviness of metal parts.

Today, high-strength, lightweight thermoplastics can be utilized to supplant metal parts with for all intents and purposes no distinction in strength or reliability.

Final Words

Achieving precision in the different plastic products is incredibly important. However, this is only possible when you invest in a high-quality injection mold manufacturer.

Otherwise, you will not be able to get the high-quality plastic parts that you require to flourish in your business. If you need more information on the injection molding process and the manufacturers? please feel free to contact us now and we will be happy to assist you in any way we can!
