Multi-Drop Hot Runner Injection Mold

Why is a multi-drop hot runner injection mold system called that? The term hot runner is used because some parts of this system are physically heated so that it is easier to transfer plastic in a molten state from the machine into the mold cavities. If we compare this to the cold runner system, then the main difference between the two is simply that the cold runner system is not physically heated that is the hot runner system is in fact physically heated.

As mentioned above there is a cold runner system as well for the injection molding, so why do we need a hot runner system? The multi-drop hot runner injection mold system uses a heated manifold and runners which ensures a higher quality product to be manufactured.

And this is the main theme of the article, to understand how the hot runner system ensures high-quality product manufacturing. what exactly is a multi-drop hot runner injection mold system? How does it work and what are its advantages that ensure high-quality products?

What is a Multi-Drop Hot Runner Injection Mold System?

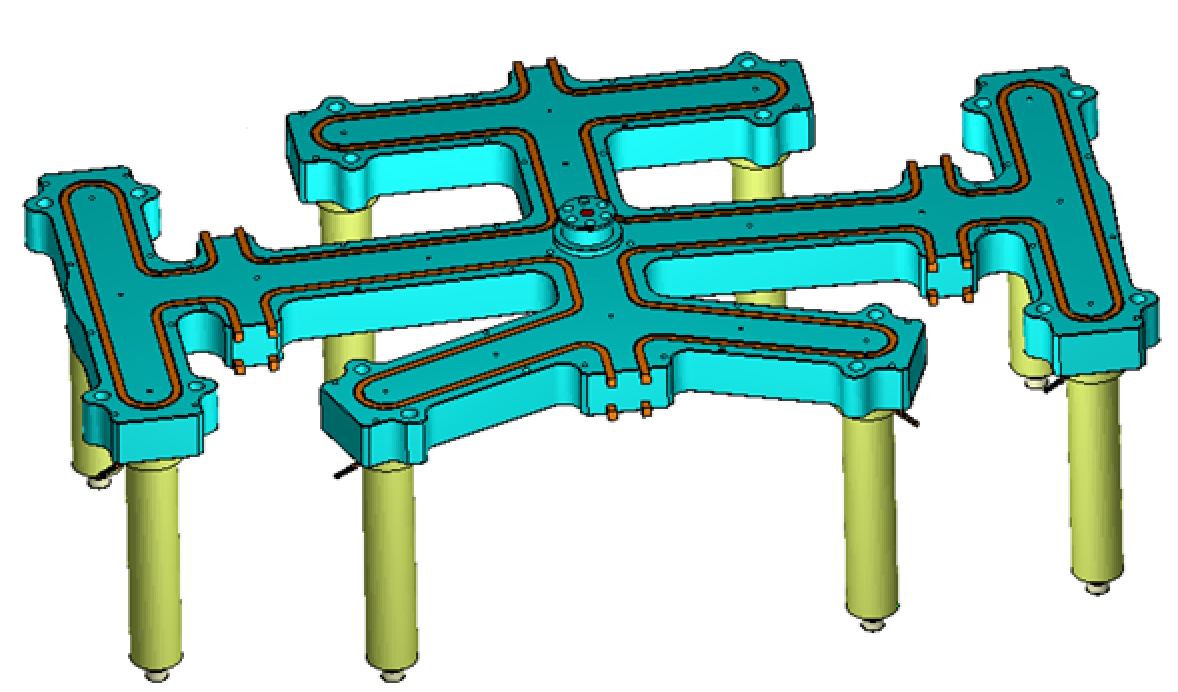

A multi drop hot runner injection mold system uses a heated manifold two-turn plastic into a molten state and keeps it Molten throughout the process. this is a type of injection molding system. In this system The molten plastic is injected into a number of mold cavities at the same time, to produce The plastic product. the molten plastic travels through the machine through internal channels that are called runners. Hence, the whole system is called the hot runner injection mode system.

The two main factors that a very important in the system are the temperature flow and the molten plastic flow pressure control. The temperature controller is very important. It maintains the temperature of all the components in the machinery to the desired temperature.

The temperature has a direct effect on the flow of the molten plastic as well as the degree of molten in the plastic. Therefore, maintaining the right temperature is very important in a multi-drop hot runner injection mold system.

The degree of pressure with which the molten plastic flows is related to the channels it flows through. Any variation in the pressure will cause damage to the product, therefore it is very important to maintain the pressure.

Features and Advantages of a Multi-Drop hot runner Injection Mold System

Now, we will look at the features of a Multi-Drop hot runner Injection Mold System. It serves as an advantage for manufacturers and ensures higher quality products.

Time-saving

It has smaller channels and therefore, it takes less time to run each cycle. You get your ready-made product from the machine. Thus, you don’t need to do the extra manual work of making the surface smooth cutting excess, or other stuff. The cycle itself is also shorter compared to the cold runner system which further decreases the cycle time.

No waste produced

Further, hot runners can be beneficial in reducing wasted plastic during high-volume shoots. Because cold runners are unheated, the channel needs to be larger. Thus more plastic needs to be shot during each cycle. If you are producing a large number of parts while iterating to get the design correct you could easily run up the cost of plastic above the cost of a hot runner assembly.

In a multi-drop hot runner injection mold system, a great benefit is that there is little to no waste. Manufacturers who manufacture large volumes of products will greatly benefit from this. In the cold runner systems where there is no heating, the channels or runners are much bigger. Bigger channels mean that larger amounts of plastic are used during each cycle. Making large amounts of different products will easily cost you a lot on the amount of plastic you use. However, in the hot runner Injection Mold System, there is a lot less waste done, close to non.

Precise and good looking products

The multi-drop hot runner injection mold system has a lot of advantages to offer when it comes to very challenging detailed geometry in the products. These types of products require very less error because there is a lot of detailing in them.

For such a product A very undisturbed even flow of the molten proper plastic is required. Therefore, the hot runner system is the best option. As it heats up the plastic throughout the process. A very even flow of molten plastic is produced that enters the mold cavity. Thus, resulting in the production of very good quality products.

If we compare this to the cold runner system, we will get a very uneven flow of molten plastic and the detailing on the product will not be visible. Therefore, a very low-quality product will be produced.

Automation in process of injection molding

There is an increase in the demand for automatic systems in the industries, including injection molding systems as well. As we go in the future, newer and more advanced technologies are being used in every industry.

Likewise, in the injection molding industry, the Multi-Drop hot runner Injection Mold System allows you to atomize your molding process. This system is very flexible and there is no danger of uncoordinated machinery.

The multi-drop hot runner injection mold system can be used to manufacture parts like, phone cases, Bottle caps, and any type of projects that require the manufacturing of large volumes of inexpensive plastic parts.

It is a much better manufacturing plastic products process compared to the cold runner system. Many industries are upgrading to this technology to improve the quality of their products and work efficiently.



Introduction

Our lives are filled with plastic products. Even things that are made up of other materials like metals also have plastic parts in them, like the handle of your bicycle. Have you ever wondered how these plastic pieces in the everyday things in our life are made? There are many different types of plastic products. Some are single-colored, some are dual-colored and others are multi-colored. Most of the dual-colored plastic pieces are made from a technique called the 2K mould technique.

To some people, it might seem a bit complicated, but in fact, it’s very simple. The 2K mould technique is also commonly known as the 2-shot injection molding process. As the name suggests, it is a process involving a mold and the plastic which is injected into the mold.

What is the 2K mould technique?

The 2K mould technique, also known as the 2K injection molding process, is a manufacturing process. The 2K mould manufacturing process is used to manufacture molded plastic products that are made up of two different materials combined together or two different colors of the same material combined together to form a single product.

The mold used for this process is the two-part mold, which means that the mold has two parts. The two materials, same or different, are chemically bonded when the two are merged together to form 1 single product.

The process of 2k mould technique

2k mould Injection molding process is one of the most primary molding methods for thermoplastic materials. The process usually includes the steps; plasticization, 1^st injection, rotation, 2^nd injection, cooling, and ejection.

The plastic materials or plastic pallets are introduced in the barrels where they are compressed with the help of the rotating screw that is inside the barrel.

As this is a 2k molding process, there will be 2 types of plastic materials, which will be introduced in 2 different barrels. The heating bands wrapped around the rotating screw further help the rotating screw to warm up the plastic. As the plastic pallets are moved forward along the barrel by the rotating screw, they are gradually melted. The plastic is entirely melted when it reaches the frontal end of the Barrel.

When enough melted plastic is in front of the rotating screw end, the rotating screw moves forward, injecting the melted plastic into the mold cavity. When the melted plastic starts shrinking inside the mold due to cooling, the screw keeps injecting the molten plastic into the mold cavity continuously, for replenishment to ensure that a completed structured product is produced.

This is the first injection. The temperature controller introduces cooling water or oil into the mold, near the mold cavity to maintain the specified mold temperature to help solidify the molten plastic inside the mold.  The molten plastic cools down and solidifies in less than a minute.

After it solidifies, the mold opens and the whole part of the mold with the solidified plastic rotates 180-degree. Then the mold closes again, and the second molted plastic is injected into the rotating mold. It then solidifies, the ejector rod moves the ejector pins forward and forces the molded solidified plastic out of the mold cavity.

The importance of the 2K mould technique

There are many benefits that come from the 2K mould technique, which makes the process important.

Best for making products of 2 different material/color

The 2K mould technique is a very useful technique. it is one of the most used processes to manufacture dual-colored plastic products. And not just dual-colored plastic products but also plastic products that consist of two different plastic materials.

For example, the bicycle handle has a harder plastic body but the place is where you put your finger has a softer plastic. Likewise, yeah toothbrush has a Harder plastic body but where you place your fingers is a softer plastic.

Versatile

The 2K mould technique is a very versatile process. We can use this process to produce multiple different types of products. we can use different molds to produce different products.

We can also use different types of plastic materials as well. This process is used in many different types of product manufacturing industries. There are so many products that have a 2K mould process.

Less time consuming

No secondary process is required in the manufacturing of the products. everything happens in the machine. the whole double injection process of 2k mould happens in the machine, in seconds or a minute the product is ready.

Attractive and precise appearance of the product

The 2K mold technique Is a very precise technique. The products produced from this technique are also more aesthetically good-looking.

This is a very efficient technique to combine two different types of plastics for example a harder (substrate part) and a softer plastic (over-molded part) together with precision. The two plastic pieces fit so perfectly together, it feels like they are meant for each other.

Extremely cost-effective

I’m not going to skip over the fact that the 2K mold technique is a very cost-effective process for producing bulk amounts of plastic products at a very reasonable price easily. This is a very great option as the only cost is the initial cost for the machine. Once you have the machine it’s very easy and cheap to produce huge masses of Plastic products with this.

Beautiful, multi-colored plastic products can be manufactured with the help of the 2k mold technique. There is no need for painting no extra secondary process is needed for completing the process of product manufacturing. It’s a very simple easy a quick process that manufacturers plastic products. the cost per piece is also very low. therefore, it is. An ideal process for manufacturing plastic products. many manufacturers preferred this process because of the amazing advantages it offers.



What are the Advantages that a 2-shot Mold Supplier Enjoys?

Two-shot injection molding is one of many manufacturing techniques used to make items out of plastic polymers. When it comes down to production, one method finishes above the others: 2-shot mold supplier!

Many processes like compression thermoset molding and extrusion can produce the finished product. However, this process provides an edge with its advantages when considering alternatives such as flexibility or lower cost because there are fewer pieces needed for each part which means less waste material where you only need half a tool instead of just storing them away uselessly after use, unlike other techniques that require inventories full at all times.

What Is Two-Shot Injection Molding?

Two-shot injection molding is a type of continuous process plastic manufacturing that uses two different types of resin in one shot to produce parts.

In recent years, this technique has become the standard for product development and production because it offers many advantages over simpler methods such as; reduced costs due in part to using materials more efficiently (less waste), faster cycle times which allow manufacturers greater responsiveness with designs changes on products while still meeting customer demand levels, etc.

A 2-shot mold supplier can enjoy many advantages. The main advantage that a 2-shot mold supplier has is their ability to produce hundreds or even thousands of different products with just one set. They are also able to create complex shapes quickly and efficiently using these molds, which means they don’t have as much invested in equipment like extruders, ovens, etc., saving money on operational costs over time!

Here Are A Few Examples of How Two-Shot Injection Molding May Help Distinguish Products While Also Enhancing Advantages.

Examples

A 2-shot mold supplier offers many advantages. For example, they can produce more parts with less time and money as well as offer higher quality products due to better surface finishes than companies who use conventional injection methods or even lost wax casting techniques such these things are common among 3D printing technologies used by some commercial prototypes in their quest for innovation.

It’s Easy to Do Two-Shot Injection Molding

Injection molding is a process where one material gets injected into another in order to make the initial sections of your product. Then, if you want colour or additional parts added on there too then they are done by just one injection for both materials rather!

Do You Want to Make Your Own Product?

Injection molding is a great way for beginners! It’s easy and quick. The process basically goes like this. First, the material of choice gets injected into an empty cavity made from another machine. This has already been designed with specific cavities on its part just waiting patiently for new items to be added to their general area.

Then if we need color or extra pieces too they’re done easily as one single operation. You would not need other steps involved at all because these two processes happen simultaneously. So no need to waste time separating parts when there are only seconds left before closing up shop.

Two-Shot Injection Molding Saves Money, Improves Quality, And Reduces Labor

Two-Shot Injection Molding is a great way to save money. You can produce two identical parts in one process. This means your company is able to replace any broken equipment or make repairs more quickly than if you are using traditional instruction of manufacturing!

Two-Shot Injection molding is a new technology that improves product quality and consistency. It provides the best of both worlds. It tends to provide better stiffness for large parts as well as produce finer details like circuit boards or circuits. Also, it produces all this with one passage through the machine instead of two separate passes over it to create each part.”

Two-Shot Injection Molding is an advanced process that can reduce the amount of labor needed in injection molding. Mainly because it only requires one machine cycle. This means that in comparison with other steps of manufacturing where you have multiple cycles for each operation, your labor costs will come down by 50%.

In addition, two-shot injection molding also has the ability to provide more items per run. This would otherwise not be possible if they used traditional techniques like die or platen press machines!

Quality Products Are Produced Via Two-Shot Injection Molding

The two-shot injection molding process produces high-quality products, which appeal to the consumer. This improves color accuracy and extends the life of colors compared with painting them on.

Eliminating this step while also increasing sales because consumers like how their product looks better without having too much paint running off or being easily wipeable away. In some cases where you can still see remnants after wiping up the excess liquid from spilled food items etcetera!

With the two-shot injection molding process, your product can be both stronger and lighter than if it is created by conventional methods. With a stronger bond without any need for adhesives or glue; ergonomically designed fittings inherently reduce misalignment in production lines. Thus, this offers you a more efficient design while reducing downtime caused by work stoppages!

Injection Molding with Two Shots Is Versatile

Two Shot injection molding process is Versatile and ideal for any industry. We prefer this versatile method of creating molds because you can apply it to a variety of industries. For instance, you can use them for aerospace.

Also, it has an extensive need due to the high cost associated with manufacturing certain parts-to-consumer products like baby bottles or military equipment. The durability offered by these tools makes them invaluable no matter what your application may entail. They’ll last through anything that comes their way!

Conclusion

The advantages of a 2-shot mold supplier are numerous. From the ability to produce more parts in less time, lower capital expenditure, and higher quality product with better surface finish it’s clear that this is an excellent choice for any company.

It is the perfect solution for companies who are looking to increase their business! If you have an interest in learning 2-shot molds, what a 2 shot mold can do for your operation, please feel free to contact Tiptopmolds.com today!
